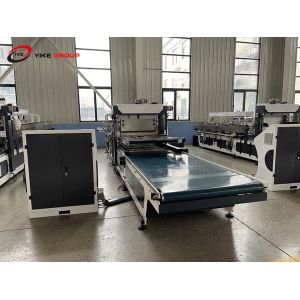

415V High-Speed Partition Assembly Machine For Partition Board

  • 1
  • 2

Brand Name : YIKE GROUP

Model Number : YK-600-3L

Certification : CE

Place of Origin : China

MOQ : 1set of High-Speed Partition Assembly Machine

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 Sets per Month

Delivery Time : 30 days after deposit

Packaging Details : Plastic Film, FCL

Type : High-Speed Partition Assembly Machine

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation,commissioning and training

Warranty : 1 Year

Application : Machinery

Automatic grade : Automatic

Packaging type : Plastic Film

Product name : Automatic Corrugated Cardboard Partition Assembler machinery

Function : Partition, Nest, Division making machine

Usage : High-Speed Partition Assembly Machine for Carton Box Factory

Contact Now

High-Speed Partition Assembly Machine

1. Partitions Form Sketch

Item

Parts name

Qty

Remarks
1

Automatic inserting machine

 1unit

Inserting: double-position;

Sheets Composing: Decussation
2

Sheet Delivery

 1 unit
3

Pneumatic System

 1 set

customer prepare air pump
4

Electric System

 1 set

PLC,human-machine interface ,

Servo control

2. Specification List for Full Automatic Servo Control Cardboard Partition Assembler Machine

Name Brand
Servo Motor Schneider
PLC Schneider
Servo Driver Schneider
Inverter Schneider
Touch Screen Schneider
AC Contactor Schneider
Reduction box APEX
Draught fan Popula
Vacuum pump EURVOAC
Proximity switch SICK
Roller motor Dedong Electric
Cylinder AirTAC
Solenoid valve tec
Flow control valve SNS
Clean air conponent AirTAC
Oil-water separator SNS

3. Structure Character

* Lengthways and horizontal sheets do decussation inserting.

* Automatic inserting each kinds of clapboard and block

* Instead of manual, two sets per time.

4. Clapboard List

Model 2

Dimension(L x W x H m include sheet delivery )

Total power
YK-600L 7.9×2.0×1.9 6.8

YK-600L

PRICE: USD

CONTAINER: 1X20GP

PAYMENT: 30% TT AND BALANCE BEFORE SHIPPING

PRICE VALIDITY: APRIL 30, 2022

Name Unit Data
Horizontal inserting width: A mm 120~900
Lengthways sheets length: B mm 210~600
Clapboard Height: C mm 70~300
Horizontal clapboard distance: D mm 20~500
Lengthways clapboard distance:E mm 45-800
Lengthways sheets No. pc 1-6
Horizontal clapboard No. opc 1-21
Carton inserting mouth width:F mm ＞board thickness
Carton thickness:G mm 1.5~8mm

Customer Prepare

  1. Air pressure: Work normal 0.4-0.8Mpa
  2. Power Requirements: 380v 50Hz Three-phase four-wire
  3. The electric wire needs to join to operate the cabinet, and a pneumatic pipeline need to join to the main pneumatic pipeline.
  4. Test machine use die-cutting-clapboard
  5. Machine use lubricates oil and grease
  6. Foundation work.
